Midterm: Press for Time

For this project, I was inspired by how frustrating it can be to set the clock on a microwave or oven. I find it is usually an unexpected combination of pressing and holding certain buttons and can never remember how to do it a few months later when it’s daylight savings again.
Press for Time is a purposefully difficult microwave clock to set. If you manage to set the correct time, the clock blinks a few times and then resets to zero.
Things I did / used / experimented with:
- rotary encoder
-
RTC (thank you Jess!)
-
soldering
-
heat shrinking
-
interface design????
-
using a bunch of buttons
- linear potentiometer

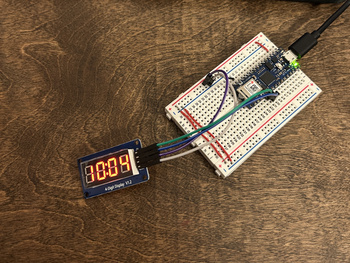

I started by getting a seven segment display to work:
Got the display to work

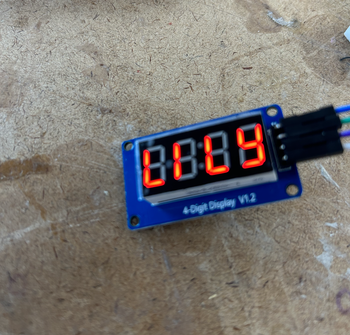

Programmed it to write my name :)

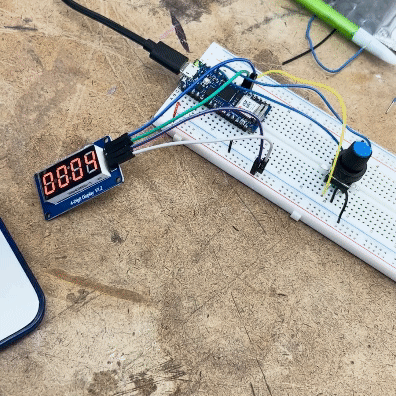

First time working with a rotary encoder

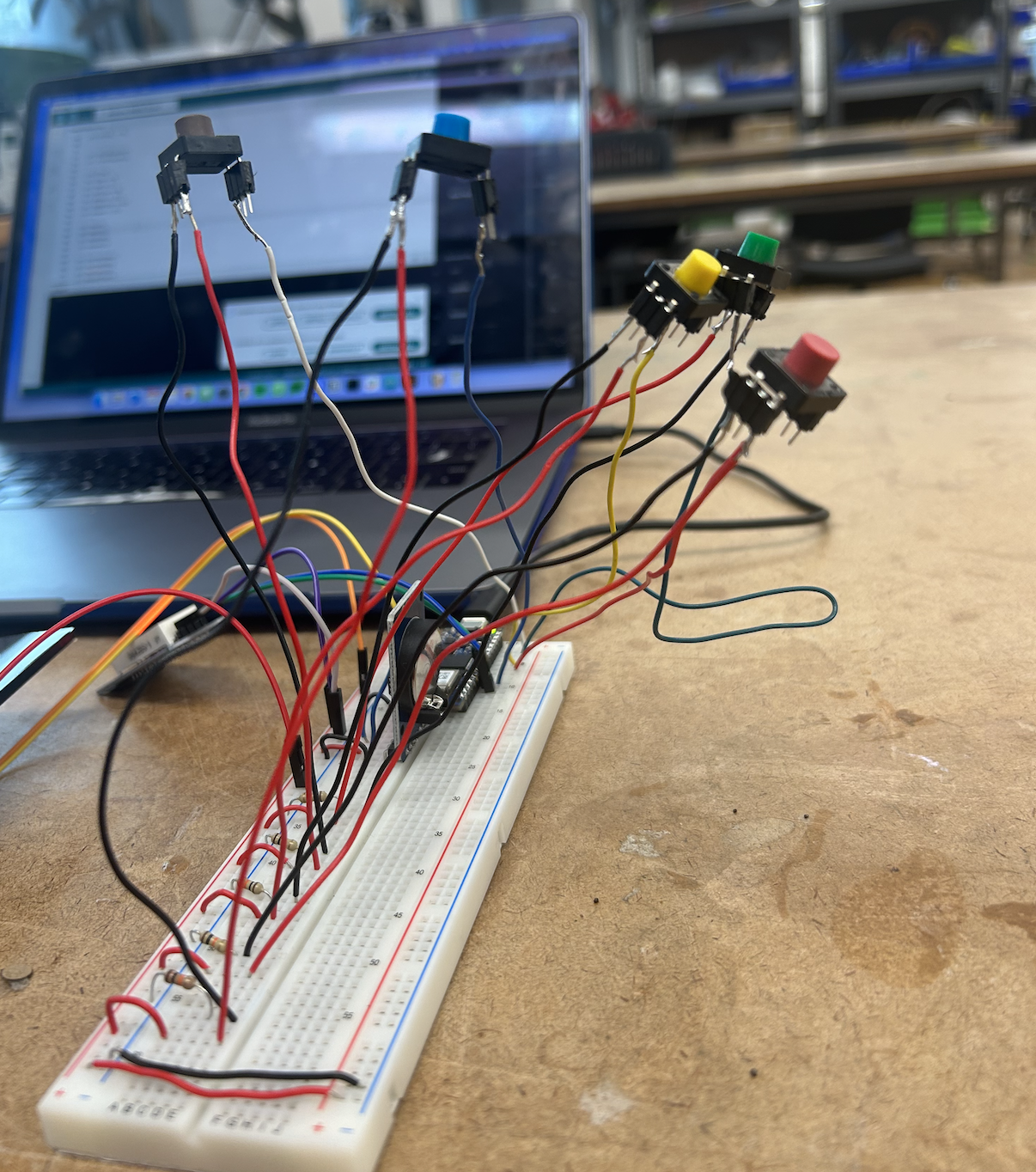

Version 1: rotary encoder + 4 buttons
User testing. It was around this time that I added a linear potentiometer which is a fun little toy. Also, I added an RTC (thanks Jess!)

Illustrator design for interface
This is the breakdown of what my code is doing:

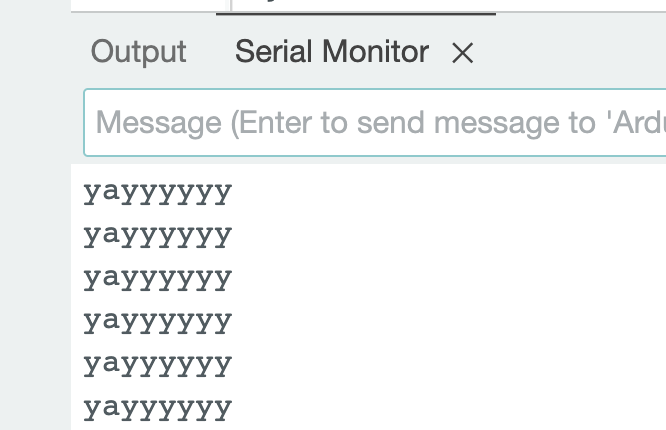

- RTC keeps time (current time displayed on serial monitor)
- Constantly check if the time on the display matches with the real time.
- If the time matches up, blink 3 times and then reset.

got the correct time!

me testing something - i don't remember what

more testing
Interface design

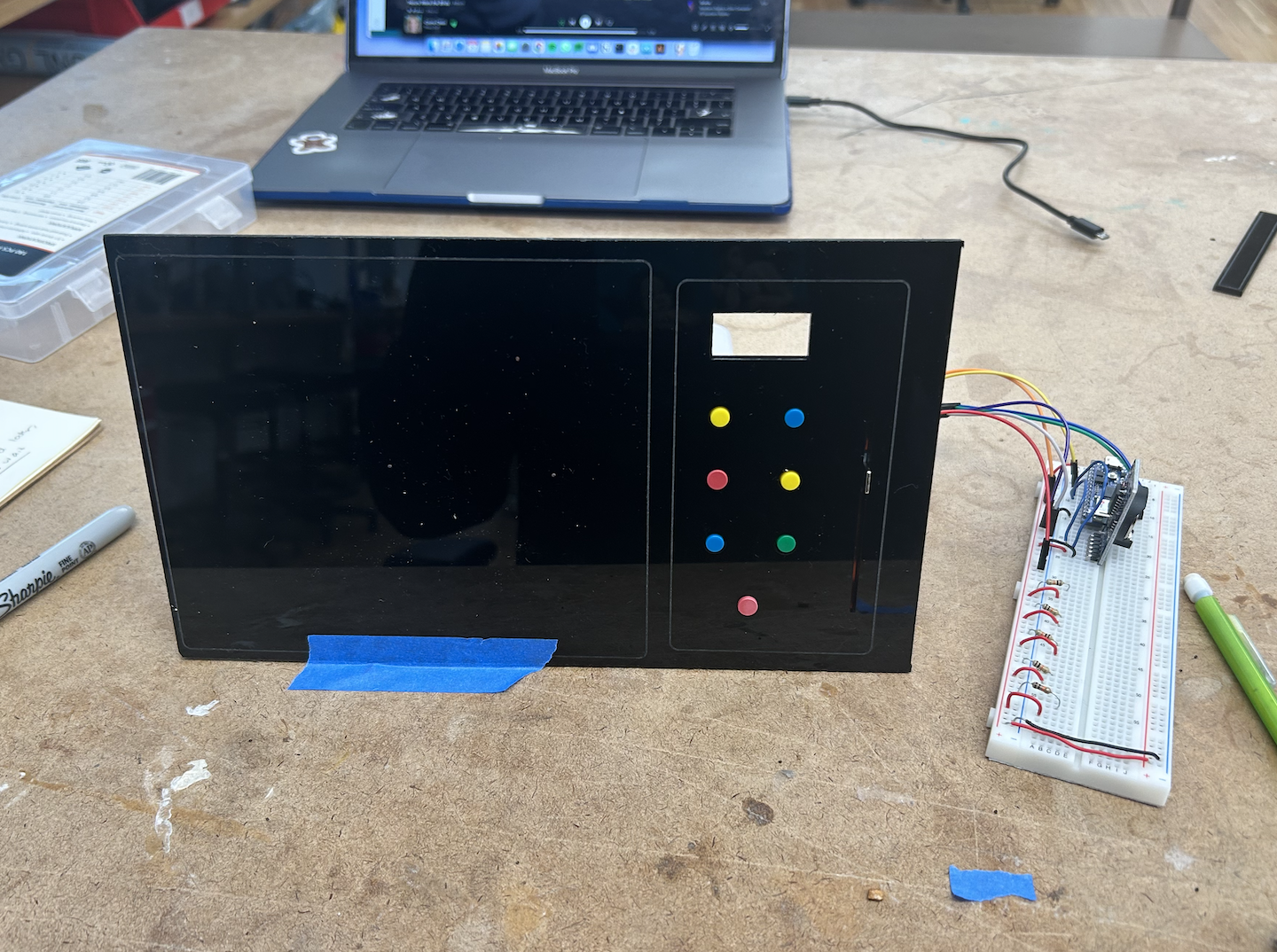

Like all fabrication projects, this took waaaay longer than expected. This was my first time making a physical interface for buttons/sliders/etc, so there was a lot of measuring / cutting / measuring again going on. I had only a small sheet of acrylic to work with, so instead of making a whole box like I wanted to, I just made the front panel.

The first one had too many buttons too close together.


Experimenting with adding key caps to the buttons.

I engraved button-sized circles on onto the backs of each button so they'd sit easily on the button.
Diagram of what each button does. The top two buttons don’t do anything.



taking the buttons off the breadboard

so much soldering

back of the acrylic sheet


a mess - but it works

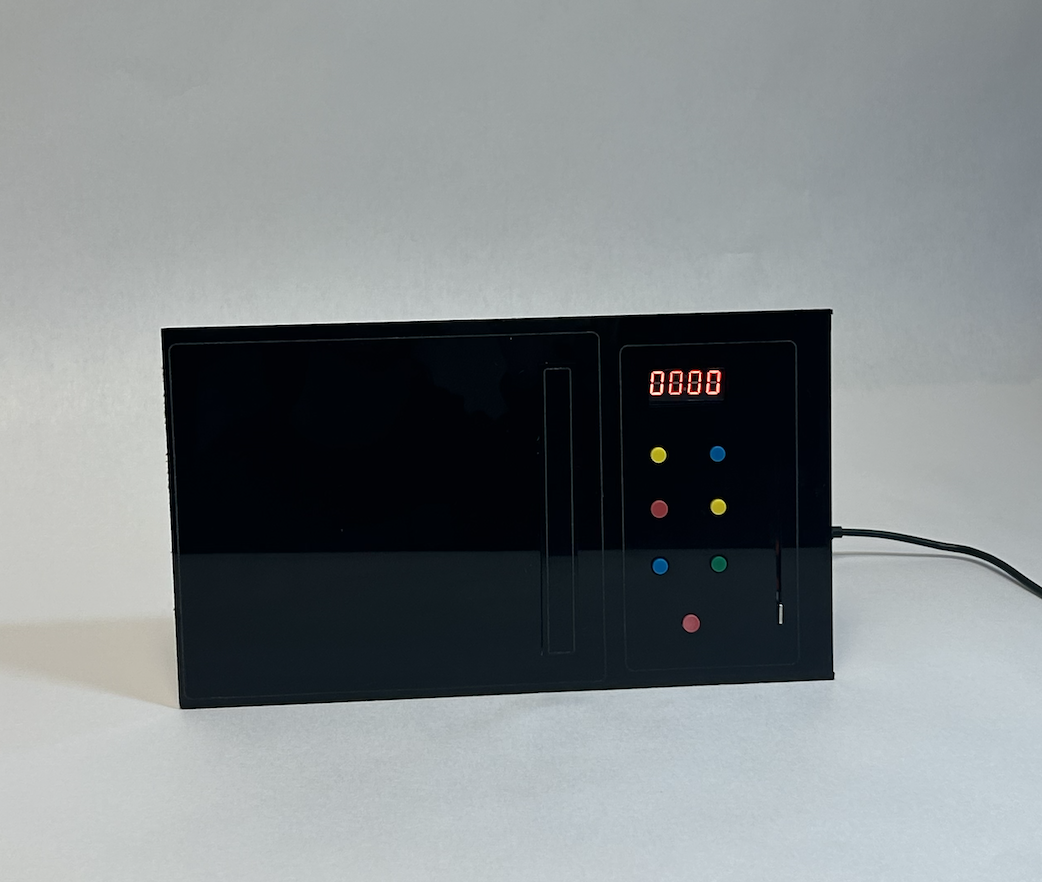

final testing (time is 7:49)

chaos behind the scenes
Future iteration:
- sound
-
build an actual box & mount it on the wall
-
figure out the RTC & fix related code
-
secure wires / buttons / etc
- keycaps
